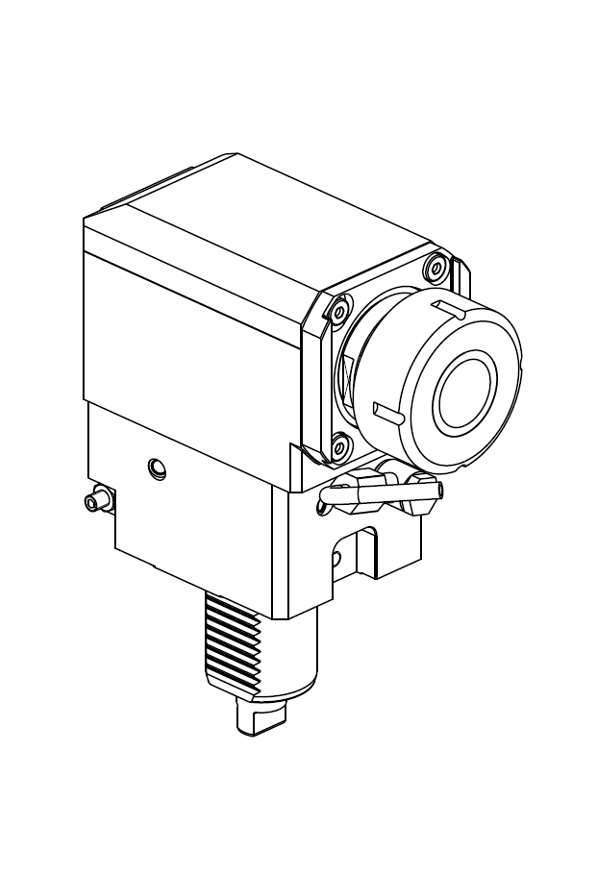

RADIAL DRIVEN TOOL VDI 40 DIN 1809 H=100 mm
Part number: DUP0043140
Catalog page: DUP153-2-10
See data sheetDownload 3D Model (STP)
Main specifications
Spindle ER40
Ratio 1:1
Max RPM 4000
Maximum Torque [Nm] 70
External cooling Yes
- Spindle: ER40
- Ratio: 1:1
- Max RPM: 4000
- Maximum Torque [Nm]: 70
- External cooling: Yes
- Version Ri./Le.: Left
- Dry-run: Yes
- Weight [kg]: ~ 8.7
