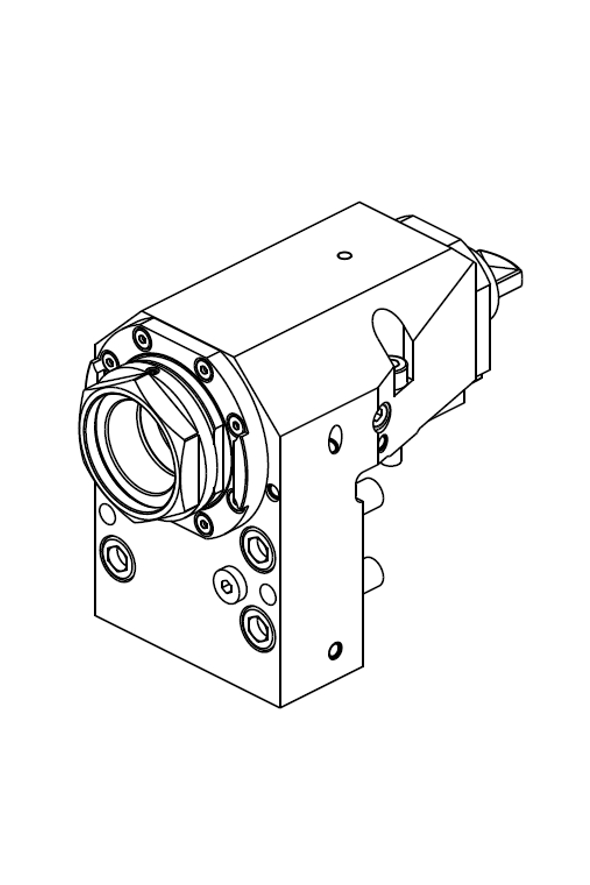

RADIAL MTSK DRIVEN TOOL
Part number: MSL0360250
Catalog page: CMZ010-2-00-K
See data sheetDownload 3D Model (STP)
Main specifications
Spindle MTSK-50
Ratio 1:1
Max RPM 6000
Maximum Torque [Nm] 105
External cooling Yes
Internal coolant Yes
Pmax Internal Coolant [bar] 100 (diag. 1)
- Spindle: MTSK-50
- Ratio: 1:1
- Max RPM: 6000
- Maximum Torque [Nm]: 105
- External cooling: Yes
- Internal coolant: Yes
- Pmax Internal Coolant [bar]: 100 (diag. 1)
- Dry-run: Yes
- Weight [kg]: ~ 8.4
List of included wrenches :
List of wrenches not included in the supply (to be ordered separately):
- CMZ - TA15M/Y/MS/MY/YS 12 ST.
- CMZ - TC15M/Y/MS/MY/YS 12ST./16ST.
- CMZ - TC20M/Y/MS/MY/YS 12ST./16ST.
- CMZ - TC25M/Y/MS/MY/YS 12ST./16ST.
- CMZ - TC30M/Y/MS/MY/YS 12ST./16ST.
- CMZ - TC35M/Y/MS/MY/YS 12ST./16ST.
- CMZ - TD15M/Y/MS/MY/YS 12ST./16ST.
- CMZ - TD20M/Y/MS/MY/YS 12ST./16ST.
- CMZ - TD25M/Y/MS/MY/YS 12ST./16ST.
- CMZ - TD30M/Y/MS/MY/YS 12ST./16ST.
- CMZ - TD35M/Y/MS/MY/YS 12ST./16ST.
- CMZ - TD45M/Y/MS/MY/YS 12ST./16ST.
- CMZ - TD55M/Y/MS/MY/YS 12ST./16ST.
- CMZ - TL20M/MS/TM
- CMZ - TA20M/Y/MS/MY/YS 12 ST.
- CMZ - TA25M/Y/MS/MY/YS 12 ST.
- CMZ - TA30M/Y/MS/MY/YS 12 ST.
- CMZ - TL25AM/AMS/BM/BMS
