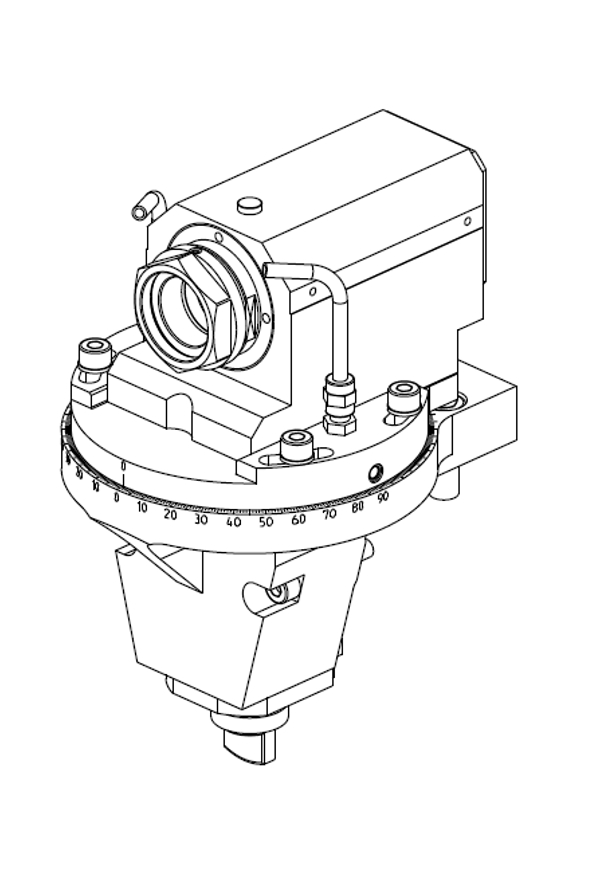

AXIAL MTSK DRIVEN TOOL FOR POWER SKIVING H=92.5mm
Part number: MSL0640100
Catalog page: CMZ350-2-00-K
See data sheetDownload 3D Model (STP)
Main specifications
Spindle MTSK-40
Ratio 1:1
Max RPM 6000
Maximum Torque [Nm] 50
External cooling Yes
- Spindle: MTSK-40
- Ratio: 1:1
- Max RPM: 6000
- Maximum Torque [Nm]: 50
- External cooling: Yes
- Weight [kg]: ~ 15
- CMZ - TA15M/Y/MS/MY/YS 12 ST.
- CMZ - TC15M/Y/MS/MY/YS 12ST./16ST.
- CMZ - TC20M/Y/MS/MY/YS 12ST./16ST.
- CMZ - TC25M/Y/MS/MY/YS 12ST./16ST.
- CMZ - TC30M/Y/MS/MY/YS 12ST./16ST.
- CMZ - TC35M/Y/MS/MY/YS 12ST./16ST.
- CMZ - TD15M/Y/MS/MY/YS 12ST./16ST.
- CMZ - TD20M/Y/MS/MY/YS 12ST./16ST.
- CMZ - TD25M/Y/MS/MY/YS 12ST./16ST.
- CMZ - TD30M/Y/MS/MY/YS 12ST./16ST.
- CMZ - TD35M/Y/MS/MY/YS 12ST./16ST.
- CMZ - TD45M/Y/MS/MY/YS 12ST./16ST.
- CMZ - TD55M/Y/MS/MY/YS 12ST./16ST.
- CMZ - TA20M/Y/MS/MY/YS 12 ST.
- CMZ - TA25M/Y/MS/MY/YS 12 ST.
- CMZ - TA30M/Y/MS/MY/YS 12 ST.
