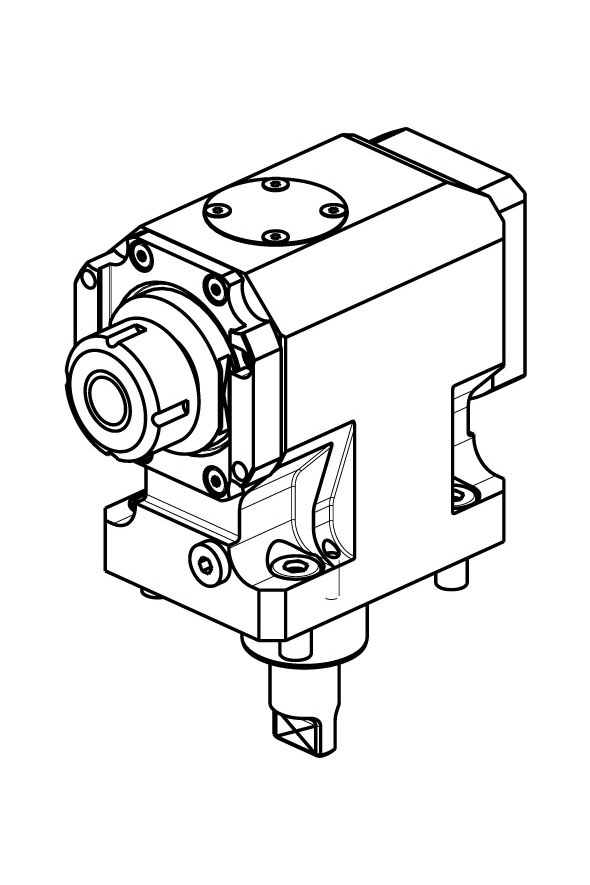

AXIAL 12000 RPM DRIVEN TOOL H=85 mm

Part number: MNZ0470225

Catalog page: MNZ150-1-11

See data sheet
Download 3D Model (STP)

Main specifications

Spindle ER25

Ratio 1:1

Max RPM 12000

Maximum Torque [Nm] 40

External cooling Yes

Internal coolant Yes

Pmax Internal Coolant [bar] 100 (diag. 2)

AXIAL 12000 RPM DRIVEN TOOL H=85 mm

Spindle: ER25
Ratio: 1:1
Max RPM: 12000
Maximum Torque [Nm]: 40
Reversible main/sub spindle: Yes
External cooling: Yes
Internal coolant: Yes
Pmax Internal Coolant [bar]: 100 (diag. 2)
Dry-run: Yes
Weight [kg]: ~ 7.5

List of included wrenches :

MNZ0410005

List of wrenches not included in the supply (to be ordered separately):

CHSTER25
