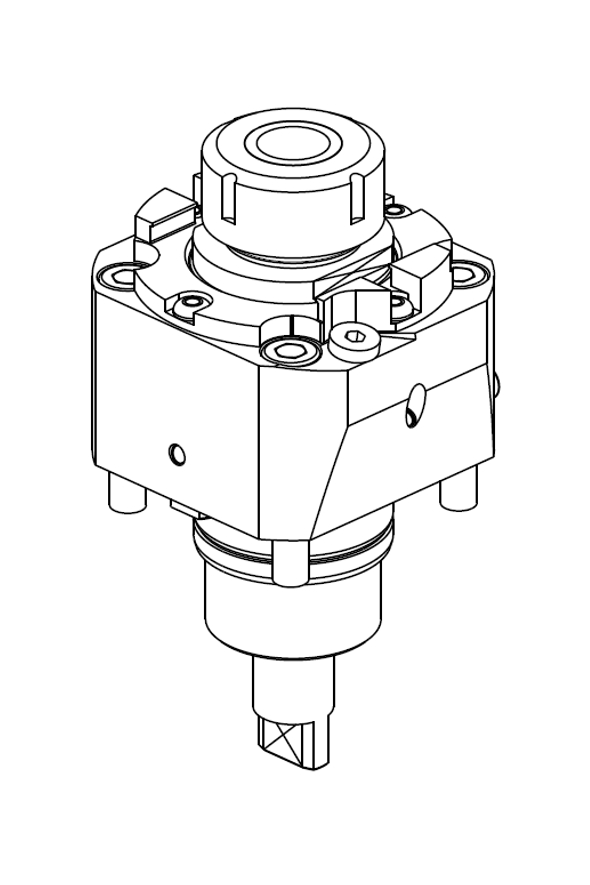

RADIAL DRIVEN TOOL REINFORCED
Part number: BGL0600232
Catalog page: BGL020-1-00
See data sheetDownload 3D Model (STP)
Main specifications
Spindle ER32
Ratio 1:1
Max RPM 6000
Maximum Torque [Nm] 70
Internal coolant Yes
Internal coolant Pr. P=70bar
- Spindle: ER32
- Ratio: 1:1
- Max RPM: 6000
- Maximum Torque [Nm]: 70
- Internal coolant: Yes
- Internal coolant Pr.: P=70bar
- Weight [kg]: ~ 4.6
List of included wrenches :
List of wrenches not included in the supply (to be ordered separately):
- BIGLIA - B1200
- BIGLIA - B1250 16 STAZIONI
- BIGLIA - B301
- BIGLIA - B445
- BIGLIA - B446
- BIGLIA - B465
- BIGLIA - B470
- BIGLIA - B501 Y/S
- BIGLIA - B510
- BIGLIA - B545
- BIGLIA - B550
- BIGLIA - B565
- BIGLIA - B620
- BIGLIA - B650
- BIGLIA - B658
- BIGLIA - B745
- BIGLIA - B750 16 STAZIONI
- BIGLIA - B765
- BIGLIA - BV210
- BIGLIA - BV315
