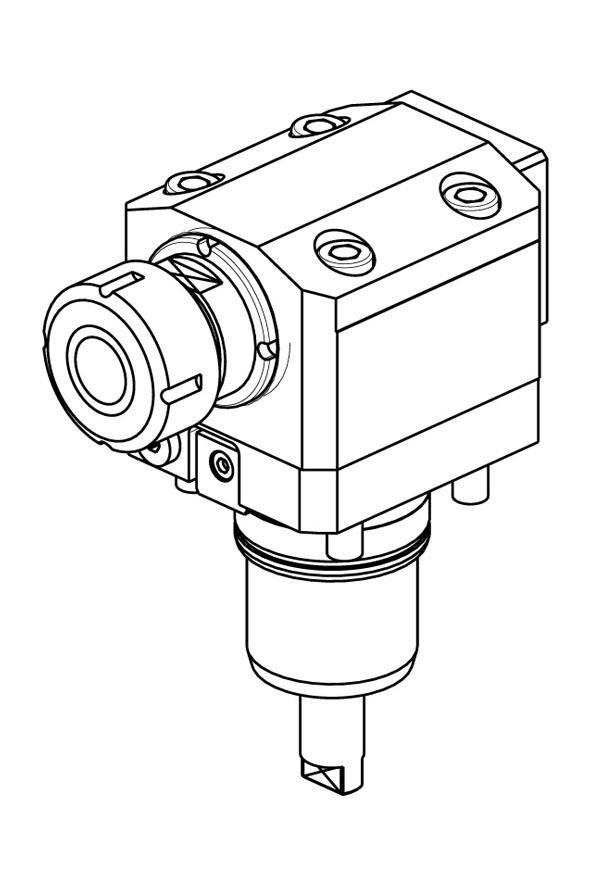

AXIAL DRIVEN TOOL H=55mm
Part number: NKM0022532
Catalog page: CMZ150-3-10
See data sheetDownload 3D Model (STP)
Main specifications
Spindle ER32
Ratio 1:1
Max RPM 6000
Maximum Torque [Nm] 50
External cooling Yes
Internal coolant Yes
Pmax Internal Coolant [bar] 100 (diag. 2)
- Spindle: ER32
- Ratio: 1:1
- Max RPM: 6000
- Maximum Torque [Nm]: 50
- Reversible main/sub spindle: Yes
- External cooling: Yes
- Internal coolant: Yes
- Pmax Internal Coolant [bar]: 100 (diag. 2)
- Dry-run: Yes
- Weight [kg]: ~ 6
List of included wrenches :
List of wrenches not included in the supply (to be ordered separately):
- CMZ - TA15M/Y/MS/MY/YS 15 ST.
- CMZ - TD15M/Y/MS/MY/YS 20ST.
- CMZ - TD20M/Y/MS/MY/YS 20ST.
- CMZ - TD25M/Y/MS/MY/YS 20ST.
- CMZ - TD30M/Y/MS/MY/YS 20ST.
- CMZ - TD35M/Y/MS/MY/YS 20ST.
- CMZ - TD45M/Y/MS/MY/YS 20ST.
- CMZ - TX52 Y2 QUATTRO
- CMZ - TX52 Y2 TWIN
- CMZ - TX66 Y2 QUATTRO
- CMZ - TX66 Y2 TWIN
- CMZ - TX66 Y3
- CMZ - TA20M/Y/MS/MY/YS 15 ST.
- CMZ - TA25M/Y/MS/MY/YS 15 ST.
- CMZ - TA30M/Y/MS/MY/YS 15 ST.
- CMZ - TD55M/Y/MS/MY/YS 20ST.
- CMZ - TTL 52
- CMZ - TTL 66
- CMZ - TX52 Y3
