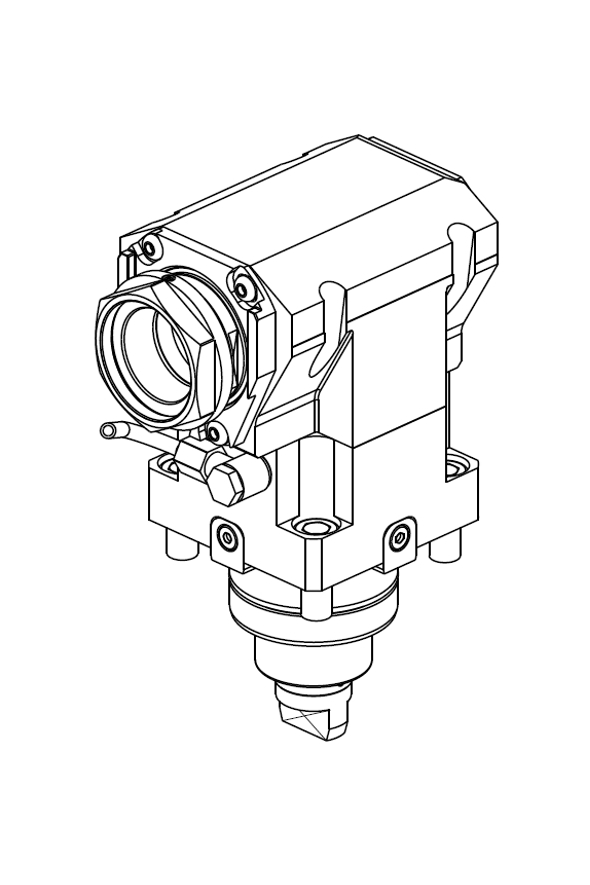

AXIAL MTSK DRIVEN TOOL 6000 rpm H=100mm
Part number: DWO3220150
Catalog page: EMC150-3-10-K
See data sheetDownload 3D Model (STP)
Main specifications
Spindle MTSK-50
Ratio 1:1
Max RPM 6000
Maximum Torque [Nm] 110
External cooling Yes
- Spindle: MTSK-50
- Ratio: 1:1
- Max RPM: 6000
- Maximum Torque [Nm]: 110
- Reversible main/sub spindle: Yes
- External cooling: Yes
- Pitch diameter: 100
- Dry-run: Yes
- Weight [kg]: ~ 9.6
