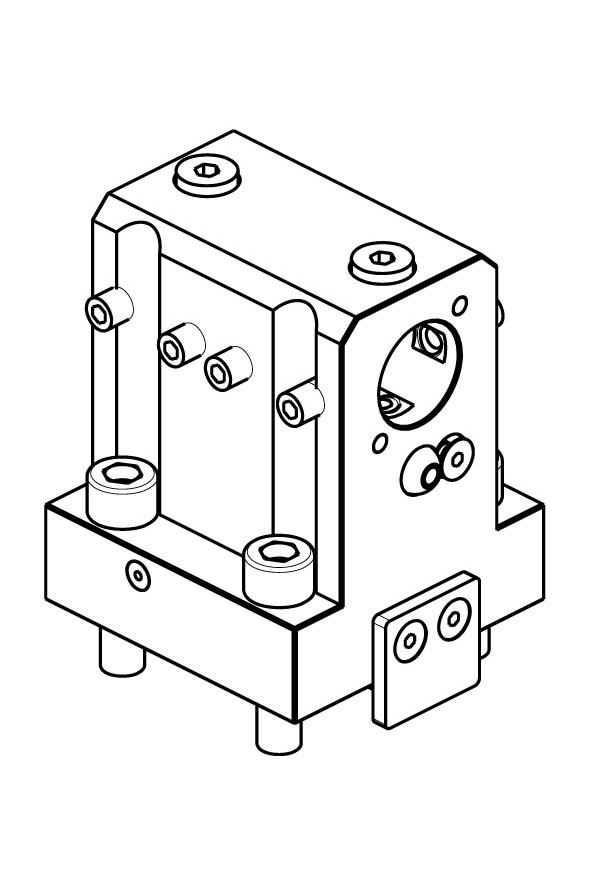

AXIAL BORING BAR HOLDER Ø25 mm / Ø1" H=75 mm
Part number: NKM0112530
Catalog page: NKM680-2-10
See data sheetDownload 3D Model (STP)
Main specifications
Part Number OEM W4447
Max RPM 0
External cooling Yes
Internal coolant (optional) Yes
- Part Number OEM: W4447
- Max RPM: 0
- Reversible main/sub spindle: Yes
- External cooling: Yes
- Internal coolant (optional): Yes
- Number of tools: 1
- Unit of measure: inch
- Diameter: 1"
- Pitch diameter: 75
- Weight [kg]: ~ 3.2
Optional accessories :
- NAKAMURA TOME - AS200 15 STAZIONI
- NAKAMURA TOME - JX-200
- NAKAMURA TOME - JX-250
- NAKAMURA TOME - NTY3 150
- NAKAMURA TOME - NTY3 150V
- NAKAMURA TOME - NTY3 250
- NAKAMURA TOME - SC150
- NAKAMURA TOME - SC200
- NAKAMURA TOME - SC200II 12ST.
- NAKAMURA TOME - SC200II 16ST.
- NAKAMURA TOME - SC250
- NAKAMURA TOME - SC300II 16ST.
- NAKAMURA TOME - SUPER NTJ
- NAKAMURA TOME - SUPER NTJX
- NAKAMURA TOME - SUPER NTM3
- NAKAMURA TOME - TW10 M/MY/MM/MMY/MMYY
- NAKAMURA TOME - TW20 M/MY/MM/MMY/MMYY 16 STAZIONI
- NAKAMURA TOME - WT150
- NAKAMURA TOME - WT150 II
- NAKAMURA TOME - WT250
- NAKAMURA TOME - WT250 II
- NAKAMURA TOME - WTS150
- NAKAMURA TOME - WTW150
- NAKAMURA TOME - WY150
- NAKAMURA TOME - WY150 V
- NAKAMURA TOME - WY250
