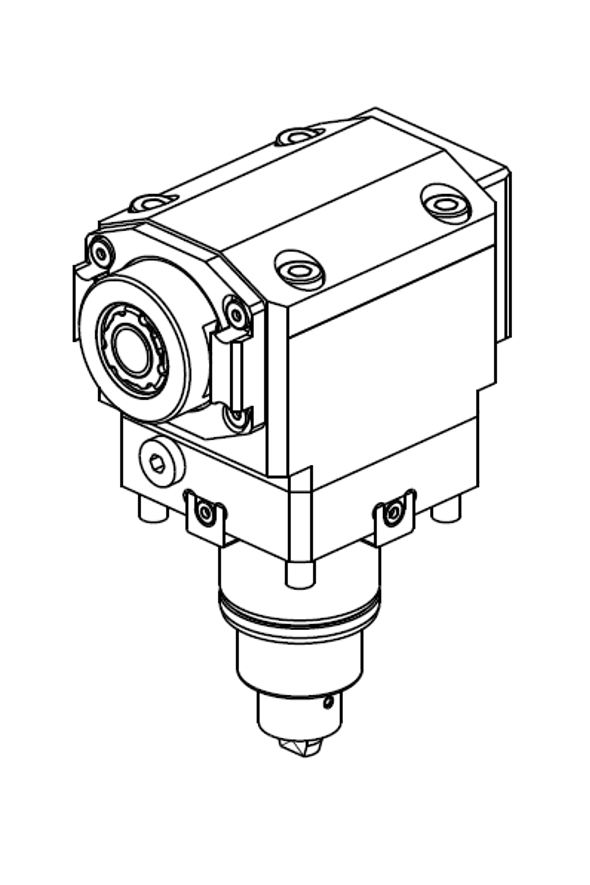

AXIAL DRIVEN TOOL H=65mm

Part number: DWO2290420

Catalog page: DWO150-1-00

See data sheet
Download 3D Model (STP)

Main specifications

Spindle ERA20

Ratio 1:1

Max RPM 6000

Maximum Torque [Nm] 35

External cooling Yes

Internal coolant Yes

Pmax Internal Coolant [bar] 100 (diag. 2)

AXIAL DRIVEN TOOL H=65mm

Spindle: ERA20
Ratio: 1:1
Max RPM: 6000
Maximum Torque [Nm]: 35
Reversible main/sub spindle: Yes
External cooling: Yes
Internal coolant: Yes
Pmax Internal Coolant [bar]: 100 (diag. 2)
Pitch diameter: 65
Dry-run: Yes
Weight [kg]: ~ 5

List of included wrenches :

List of wrenches not included in the supply (to be ordered separately):

CHUB22
