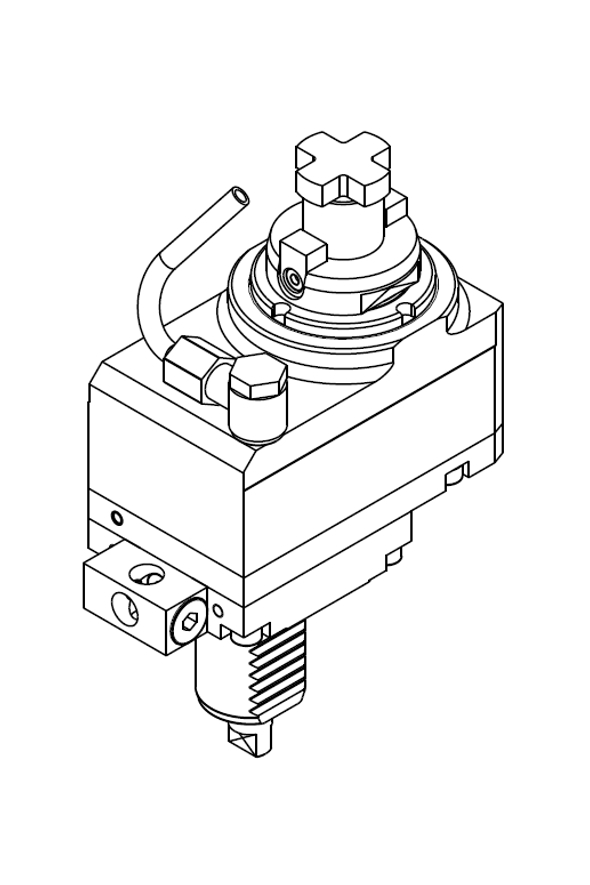

AXIAL DRIVEN TOOL VDI 30 DIN 1809 OFFSET 36 mm
Part number: DUP0271522
Catalog page: DUP014-1-05
See data sheetDownload 3D Model (STP)
Main specifications
Spindle Ø22x19
Ratio 1:1
Max RPM 6000
Maximum Torque [Nm] 30
External cooling Yes

- Spindle: Ø22x19
- Ratio: 1:1
- Max RPM: 6000
- Maximum Torque [Nm]: 30
- Reversible main/sub spindle: No
- External cooling: Yes
- Version Ri./Le.: Left
- Weight [kg]: ~ 3.2
