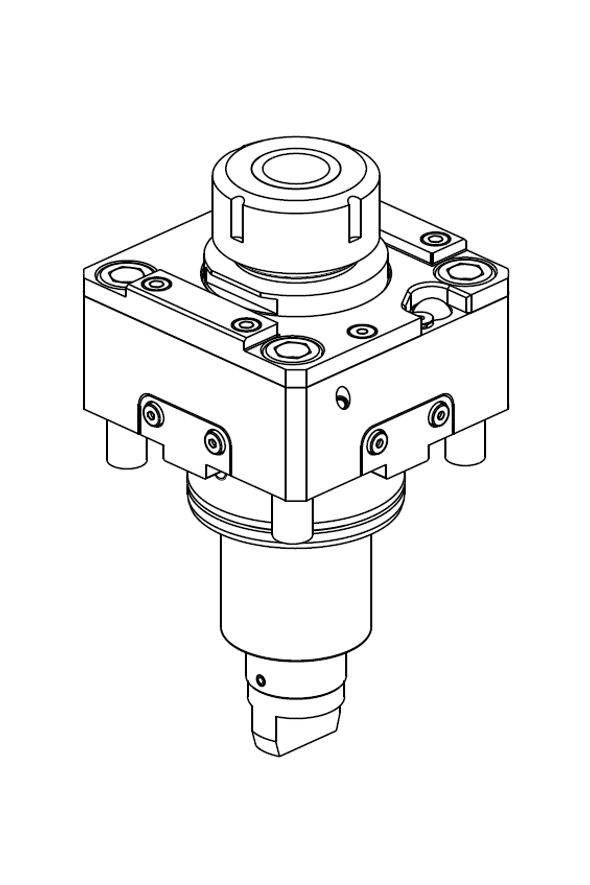

RADIAL REINFORCED DRIVEN TOOL

Part number: DWO3470232

Catalog page: DWO020-3-01

See data sheet
Download 3D Model (STP)

Main specifications

Spindle ER32

Ratio 1:1

Max RPM 6000

Maximum Torque [Nm] 100

External cooling Yes

Internal coolant Yes

Pmax Internal Coolant [bar] 100 (diag. 1)

RADIAL REINFORCED DRIVEN TOOL

Spindle: ER32
Ratio: 1:1
Max RPM: 6000
Maximum Torque [Nm]: 100
External cooling: Yes
Internal coolant: Yes
Pmax Internal Coolant [bar]: 100 (diag. 1)
Dry-run: Yes
Weight [kg]: ~ 4.6

List of included wrenches :

OKU0650004

List of wrenches not included in the supply (to be ordered separately):

CHSTER32
