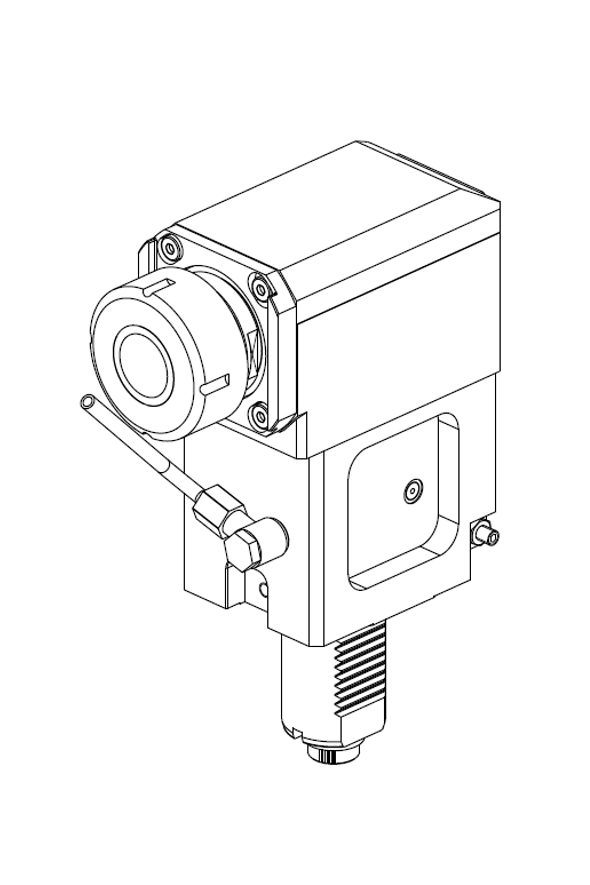

RADIAL DRIVEN TOOL VDI40 DIN5480 H=130mm
Part number: SAU0830140
Catalog page: SAU018-3-20
See data sheetDownload 3D Model (STP)
Main specifications
Spindle ER40
Ratio 1:1
Max RPM 6000
Maximum Torque [Nm] 70
External cooling Yes
- Spindle: ER40
- Ratio: 1:1
- Max RPM: 6000
- Maximum Torque [Nm]: 70
- Reversible main/sub spindle: No
- External cooling: Yes
- Version Ri./Le.: Right
- Dry-run: Yes
- Weight [kg]: ~ 10
